Stetsom BRAVO FULL 5K Digital Full-Range Amplifier Mono 1 Channel Class D 5000 Watts RMS

Stetsom BRAVO FULL 5K Digital Full-Range Amplifier Mono 1 Channel Class D 5000 Watts RMS



BRAVOFULL5K Cover

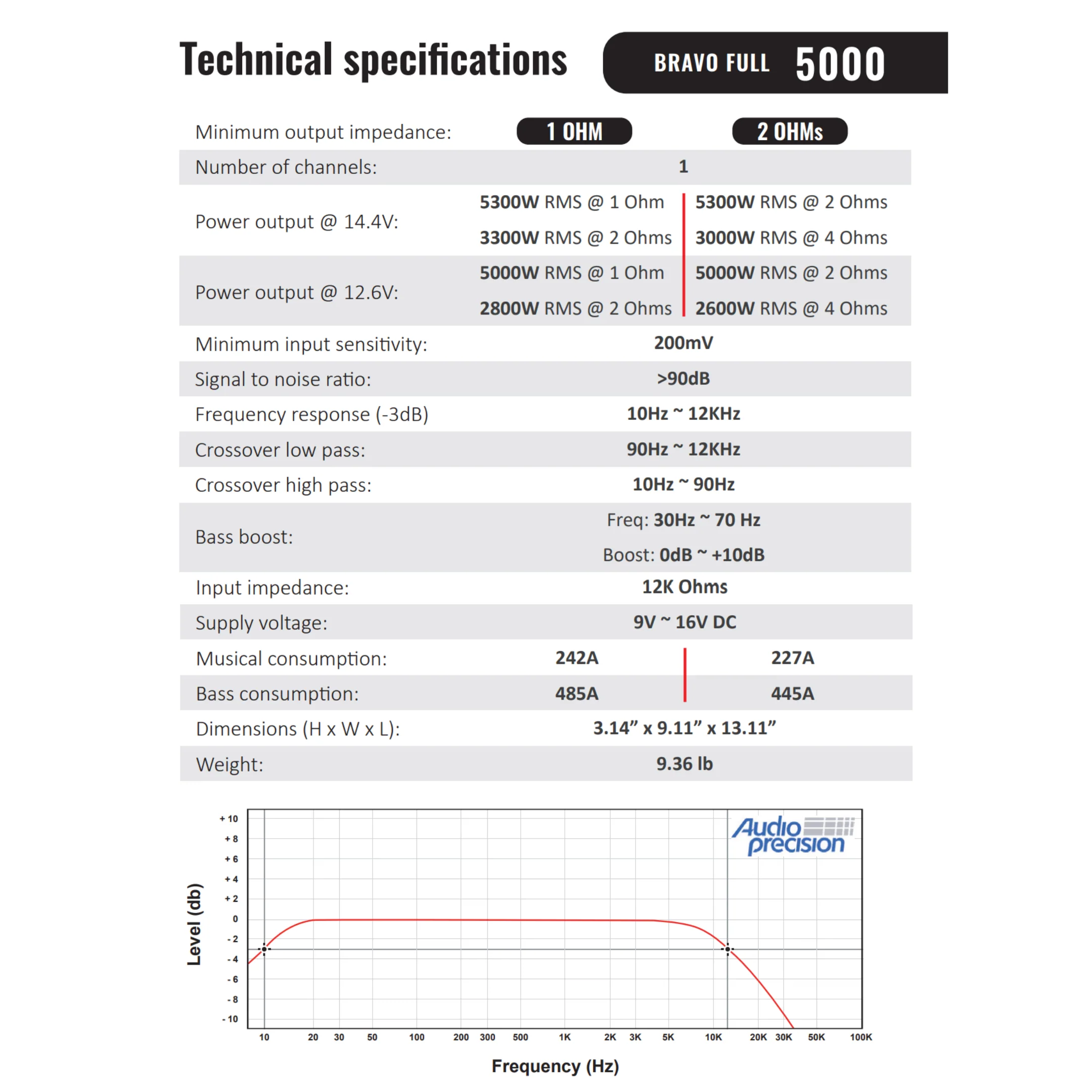

Technical Specifications (1 Ohm)

Number of Channels 1
RMS Power at 1 Ohm @ 14.4V 5300W
RMS Power at 2 Ohms @ 14.4V 3300W
RMS Power at 1 Ohm @ 12.6V 5000W
RMS Power at 2 Ohms @ 12.6V 2800W
Minimum input sensitivity 200mV
Signal to noise ratio >90dB
Frequency response (-3dB) 10Hz ~ 12KHz
Crossover low pass 90Hz ~ 12KHz
Crossover high pass 10Hz ~ 90Hz
Bass boost Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB
Input impedance 12K Ohms
Supply voltage 9V ~ 16V DC
Musical/Bass consumption 242A/485A
Dimensions (H x W x L) 3.14" x 9.11" x 13.11"
Weight 9.36 lb
--
Select Output Impedance
From $164.50

Original: $469.99

-65%
Stetsom BRAVO FULL 5K Digital Full-Range Amplifier Mono 1 Channel Class D 5000 Watts RMS—

$469.99

$164.50

Product Information

Shipping & Returns

Description



BRAVOFULL5K Cover

Technical Specifications (1 Ohm)

Number of Channels 1
RMS Power at 1 Ohm @ 14.4V 5300W
RMS Power at 2 Ohms @ 14.4V 3300W
RMS Power at 1 Ohm @ 12.6V 5000W
RMS Power at 2 Ohms @ 12.6V 2800W
Minimum input sensitivity 200mV
Signal to noise ratio >90dB
Frequency response (-3dB) 10Hz ~ 12KHz
Crossover low pass 90Hz ~ 12KHz
Crossover high pass 10Hz ~ 90Hz
Bass boost Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB
Input impedance 12K Ohms
Supply voltage 9V ~ 16V DC
Musical/Bass consumption 242A/485A
Dimensions (H x W x L) 3.14" x 9.11" x 13.11"
Weight 9.36 lb
--
