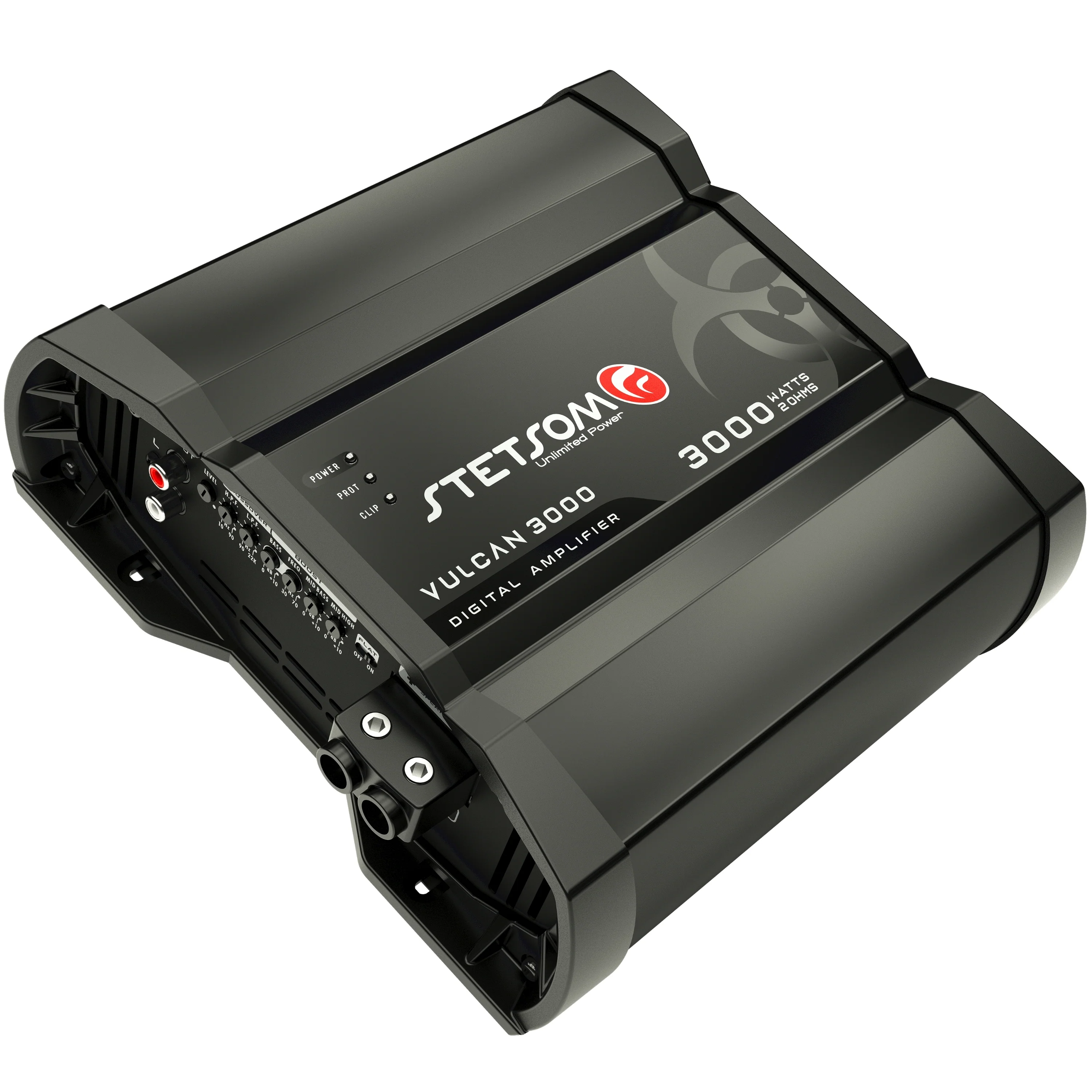

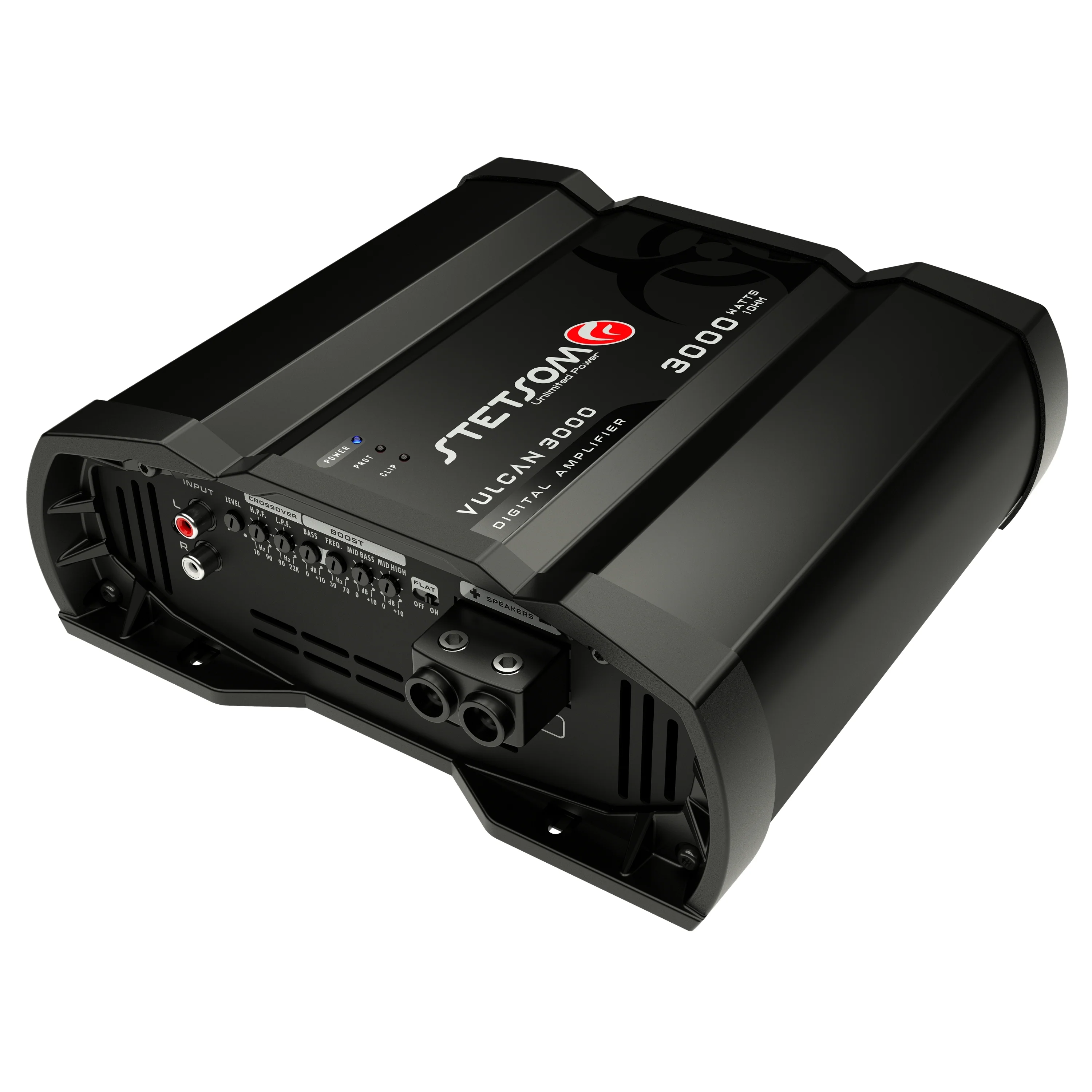

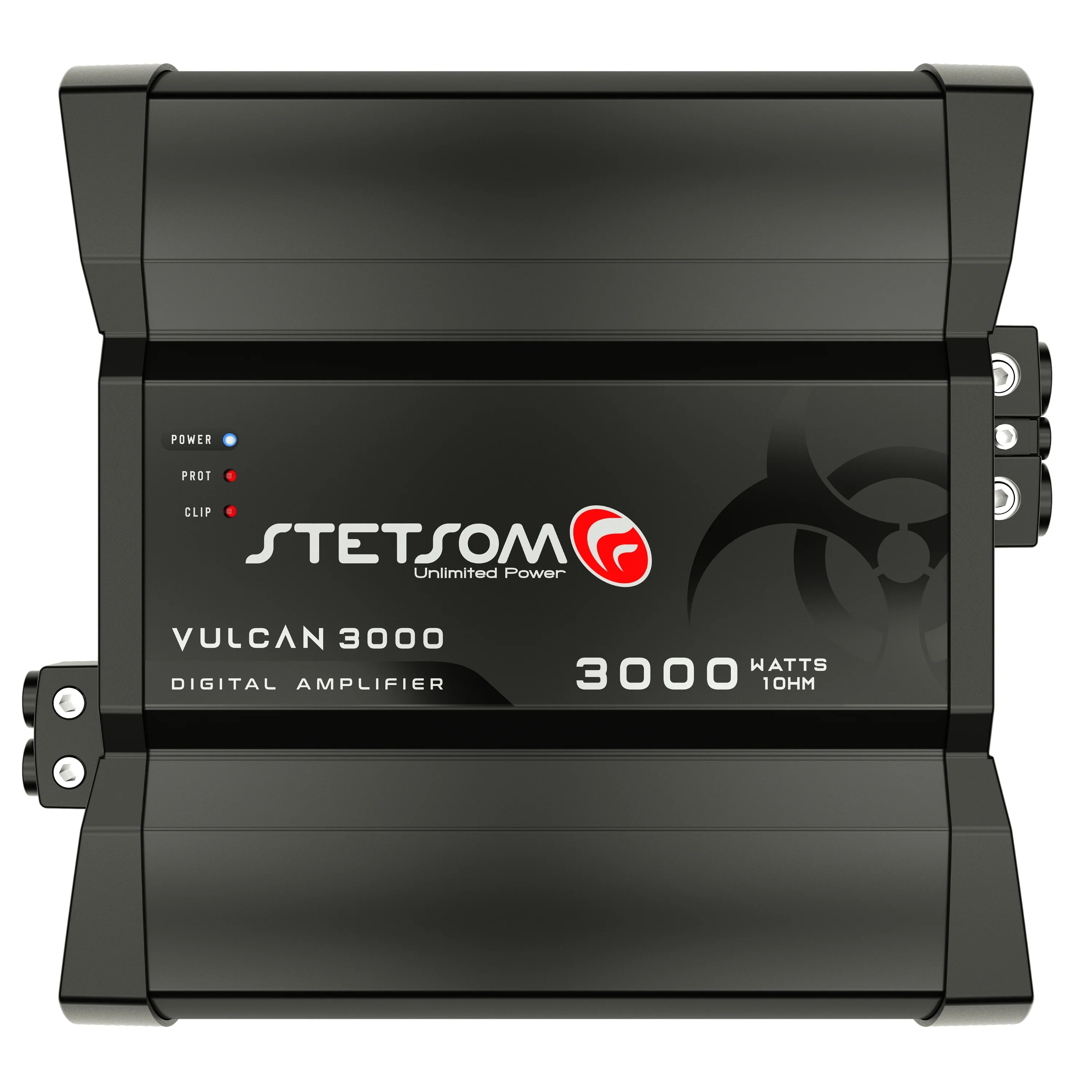

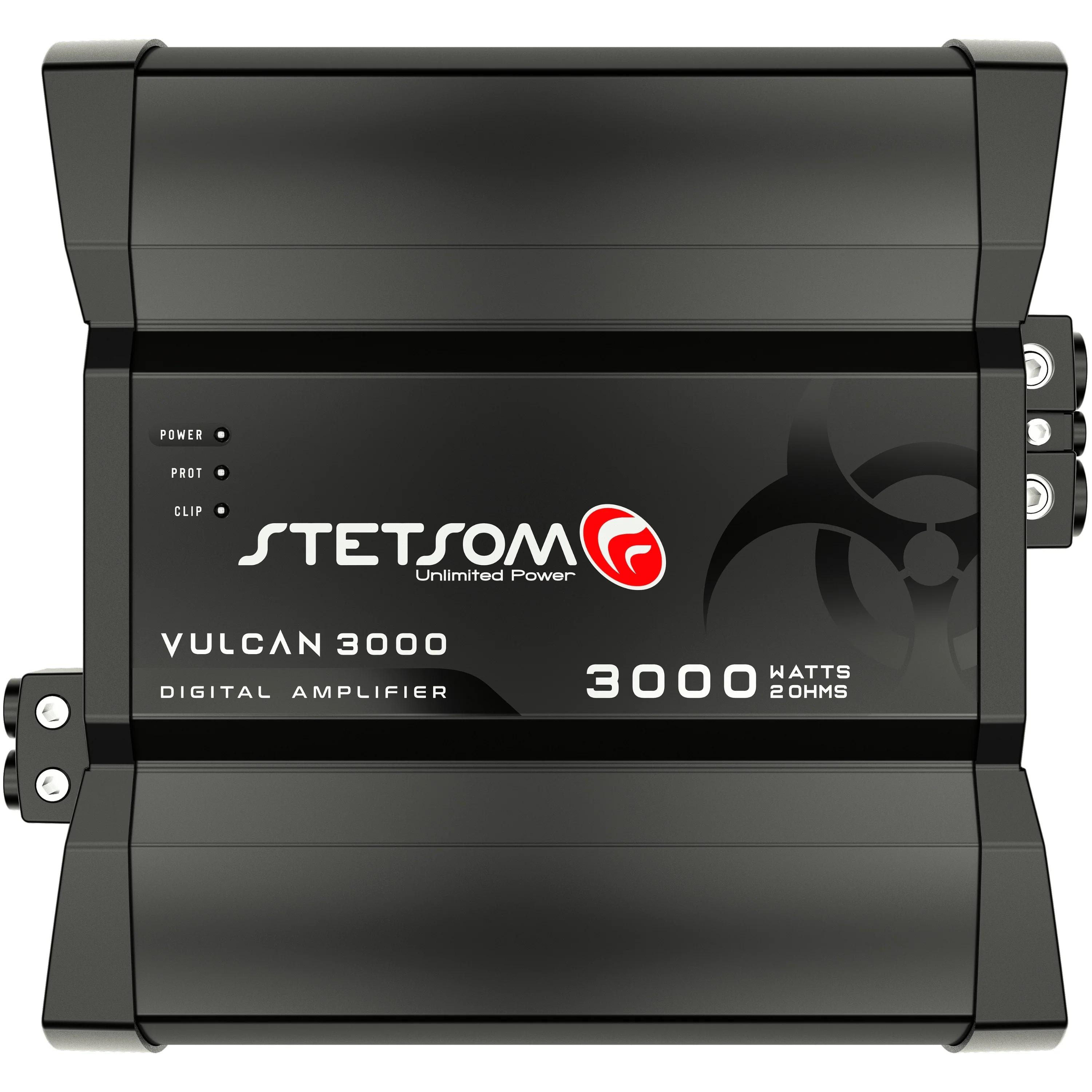

The Vulcan Series amps are Stetsom's latest models, with cutting edge technology and optimized design. They are excellent with bass as well as with voice.

TECHNICAL SPECS (1 Ohm):

• Number of Channels: 1
• RMS Power at 1 Ohm 12.6V: 3100W RMS
• RMS Power at 2 Ohms 12.6V: 2000W RMS
• RMS Power at 1 Ohm 14.4V: 3500W RMS
• RMS Power at 2 Ohms 14.4V: 2100W RMS
• Frequency Response: 10Hz ~22KHz
• Crossover Low Pass: 90Hz ~22KHz
• Crossover High Pass: 10Hz ~90Hz
• Signal to Noise: >90dB
• Harmonic Distortion: THD+N à ≤1%
• Input Sensitivity: 200mV
• Input Impedance: 18k Ohms
• Output Impedance: 1 Ohm
• Consumption with Musical Signal: 160A
• Consumption with Bass: 320A
• Dimensions (H x W x D): 78 x 231.5 x 239.5 mm
• Weight: 2.9 Kg



TECHNICAL SPECS (2 Ohms):

• Number of Channels: 1
• RMS Power at 2 Ohm 12.6V: 3000W RMS
• RMS Power at 4 Ohm 12.6V: 1700W RMS
• RMS Power at 2 Ohm 14.4V: 3900W RMS
• RMS Power at 4 Ohm 14.4V: 2200W RMS
• Supply Voltage: 9 ~ 16Vdc
• Frequency Response: 10Hz ~22KHz
• Crossover Low Pass: 90Hz ~22KHz
• Crossover High Pass: 10Hz ~90Hz
• Bass Bost Freq: 30Hz ~ 70Hz
• Boost: 0 ~ + 10db
• Mid Bass Boost: 0 ~ + 10DB
• Mid High Boost: 0 ~ + 10DB
• Input Impedance: 12K OHMS
• Consumption with Musical Signal: 150A
• Consumption with Bass: 300A
• Dimensions (H x W x D): 78 x 231.5 x 239.5 mm
• Weight: 2.9 Kg

Download Manual
