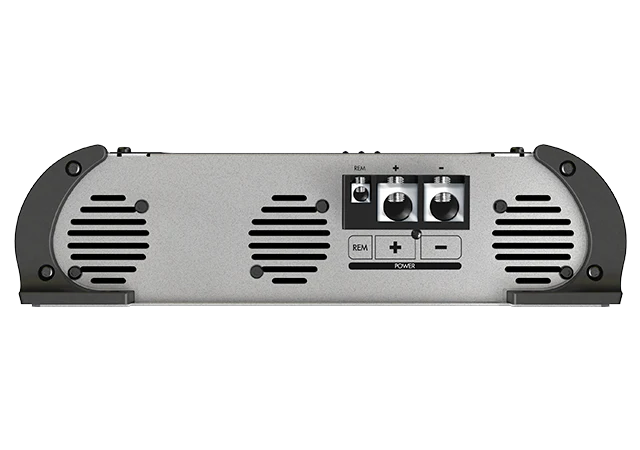

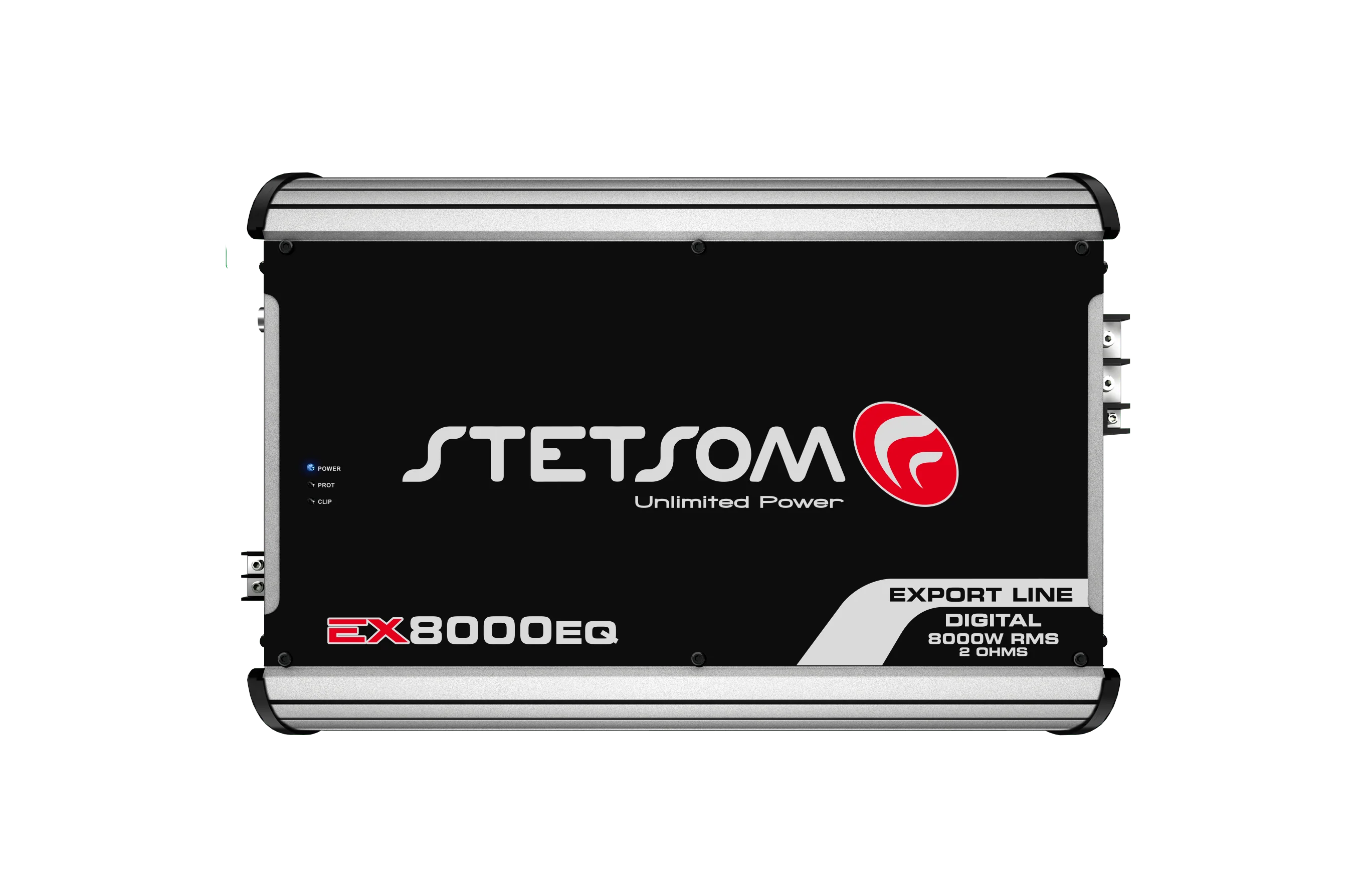

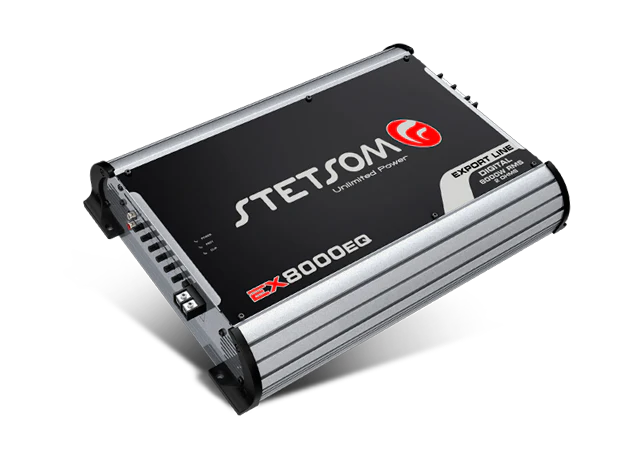

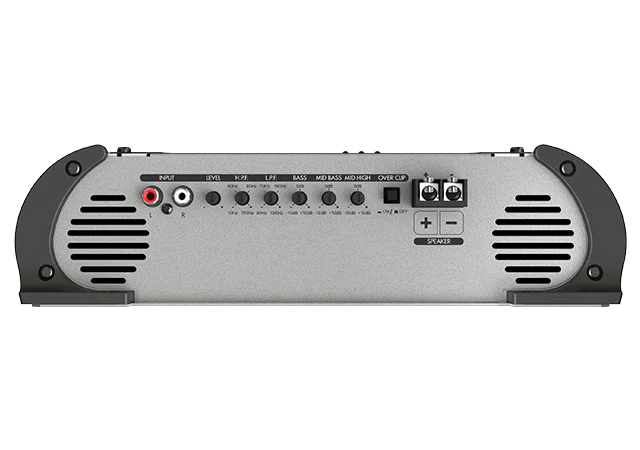

Stetsom EX 8000 EQ 1 Channel Digital Amplifier Full Range Class D 8k RMS (DISCONTINUED)
The EX Series amps are Stetsom's best-sellers. They are excellent with bass as well as with voice.
TECHNICAL SPECS (1 Ohm):
- Channels: 1
- Power @ 14.4V - 1 Ohm (RMS): 8000W
- Power @ 14.4V - 2 Ohms (RMS): 4500W
- Min. Output Impedance: 1 Ohm
- Input Impedance: 25K Ohms
- Input Sensitivity: 0.2V
- T.H.D: < 10% THD
- Signal to Noise Ratio: >90dB
- Freq. Resp. (-3dB) @ 1 Ohm: 10Hz ~ 15KHz
- Crossover Low Pass: 50Hz ~ 15KHz
- Crossover High Pass: 10Hz ~ 700Hz
- EQ - BASS @ 45Hz: ±10dB
- EQ - MID BASS @ 270 Hz: ±10dB
- EQ - MID HIGH @ 2KHz: ±10dB
- Over Clip (Power): 15%
- Power Supply: 9.5 ~ 15Vdc
- Consumption Music: 5.3 ~ 396 A
- Consumption BASS: 5.3 ~ 750 A
- Dimensions (H x W x L): 77 x 294 x 445 mm / 3 x 11.6 x 17.5 inches
- Weight: 6.3 Kg / 13.9 lbs
TECHNICAL SPECS (2 Ohms):
- Channels: 1
- Power @ 14.4V - 2 Ohms (RMS): 8000W
- Power @ 14.4V - 4 Ohms (RMS): 5100W
- Min. Output Impedance: 2 Ohms
- Input Impedance: 26K Ohms
- Input Sensitivity: 0.2V
- T.H.D: < 10% THD
- Signal to Noise Ratio: >90dB
- Freq. Resp. (-3dB) @ 1 Ohm: 10Hz ~ 15KHz
- Crossover Low Pass: 50Hz ~ 15KHz
- Crossover High Pass: 10Hz ~ 700Hz
- EQ - BASS @ 45Hz: ±10dB
- EQ - MID BASS @ 270 Hz: ±10dB
- EQ - MID HIGH @ 2KHz: ±10dB
- Over Clip (Power): 15%
- Power Supply: 9.5 ~ 15Vdc
- Consumption Music: 5.2 ~ 396 A
- Consumption BASS: 5.2 ~ 790 A
- Dimensions (H x W x L): 77 x 294 x 445 mm / 3 x 11.6 x 17.5 inches
- Weight: 6.3 Kg / 13.9 lbs
Download Manual
