Stetsom BRAVO FULL 2K Digital Full-Range Amplifier Mono 1 Channel Class D 2000 Watts RMS

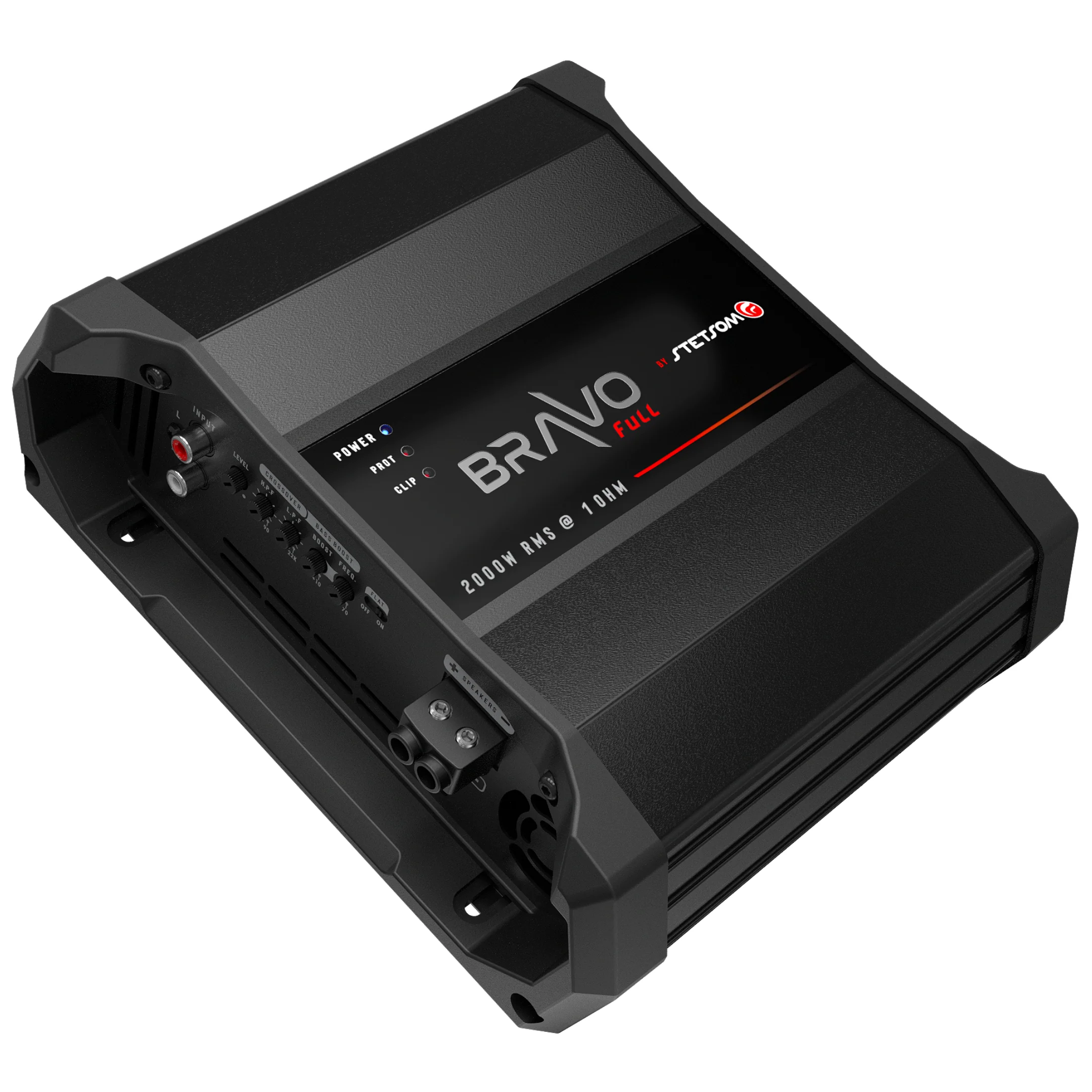

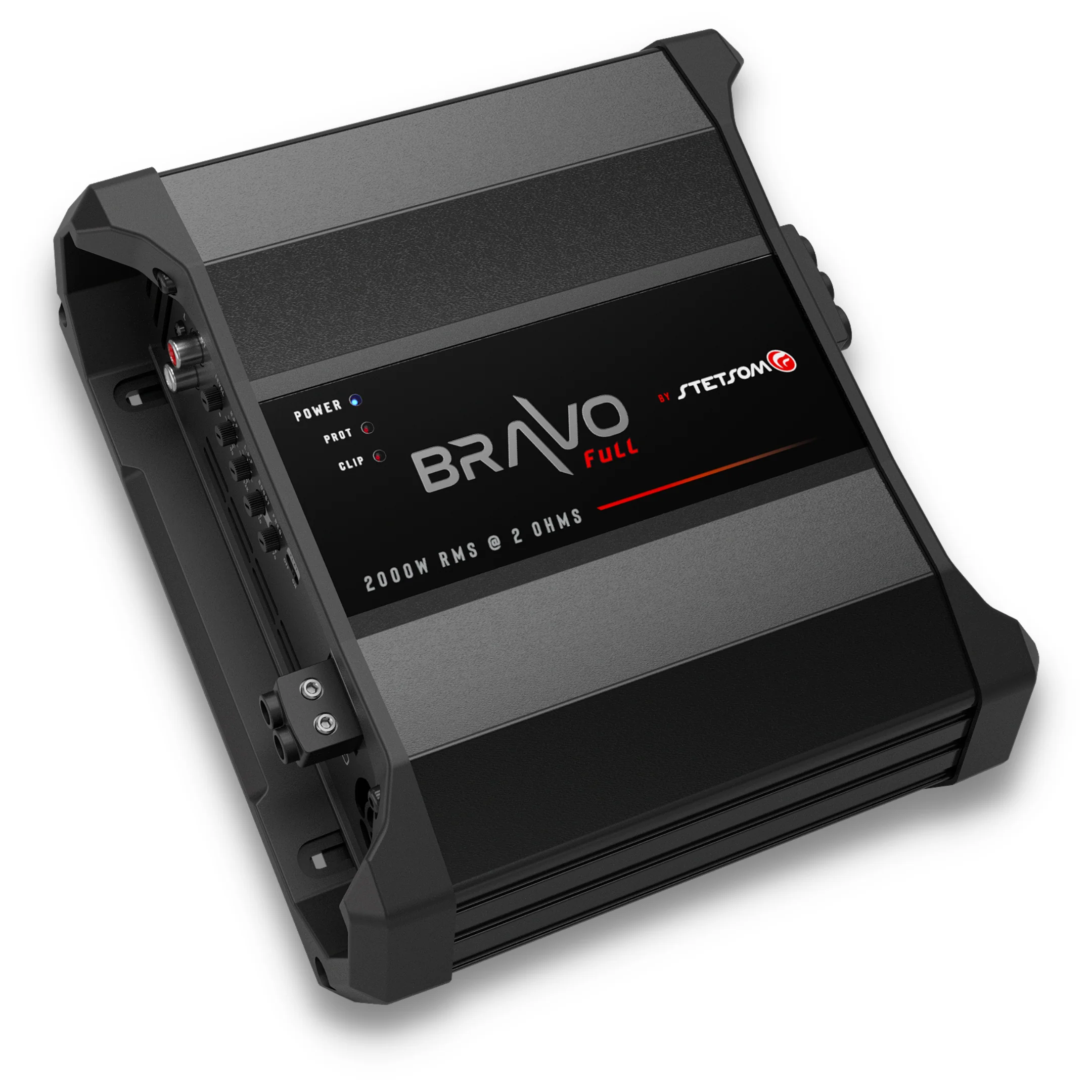

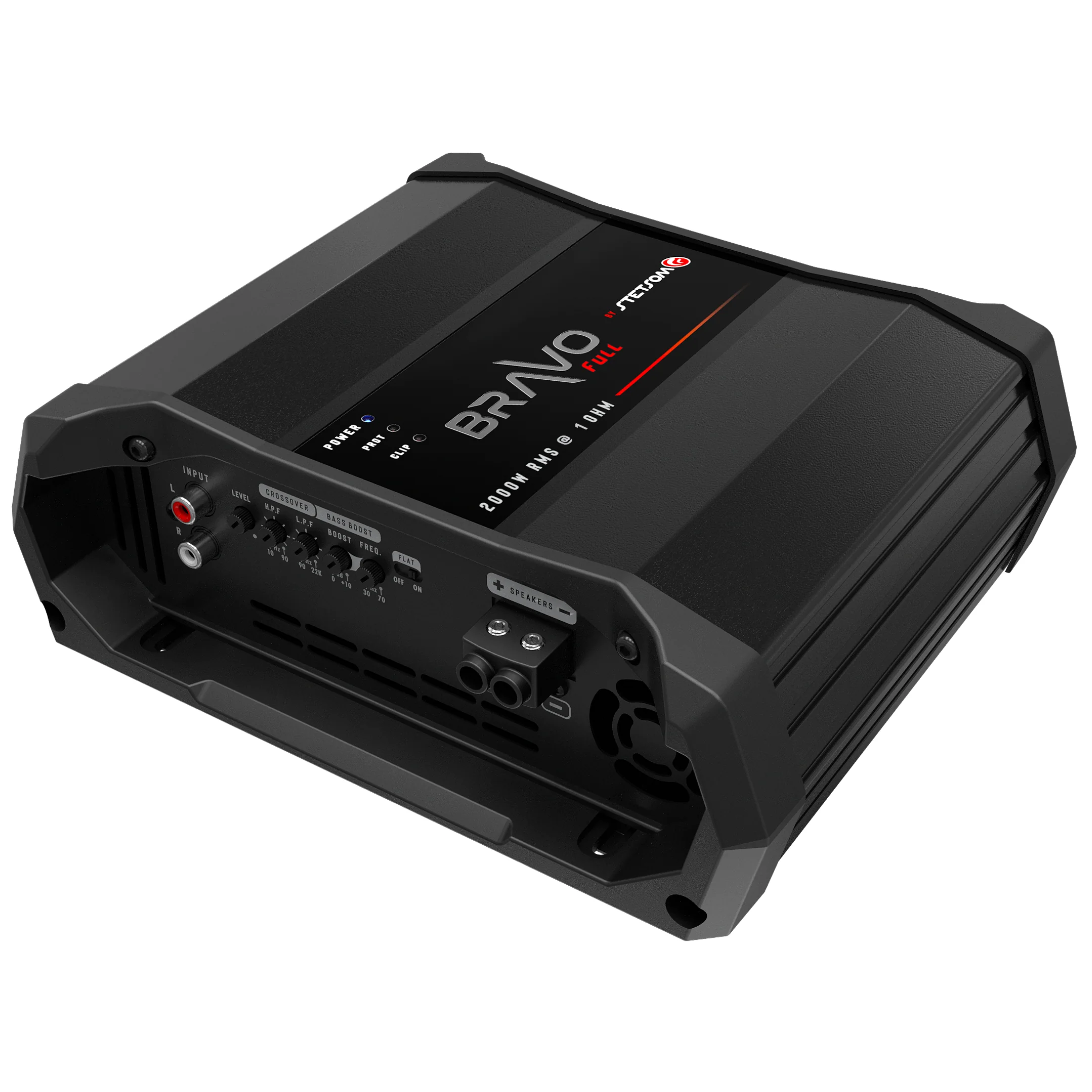

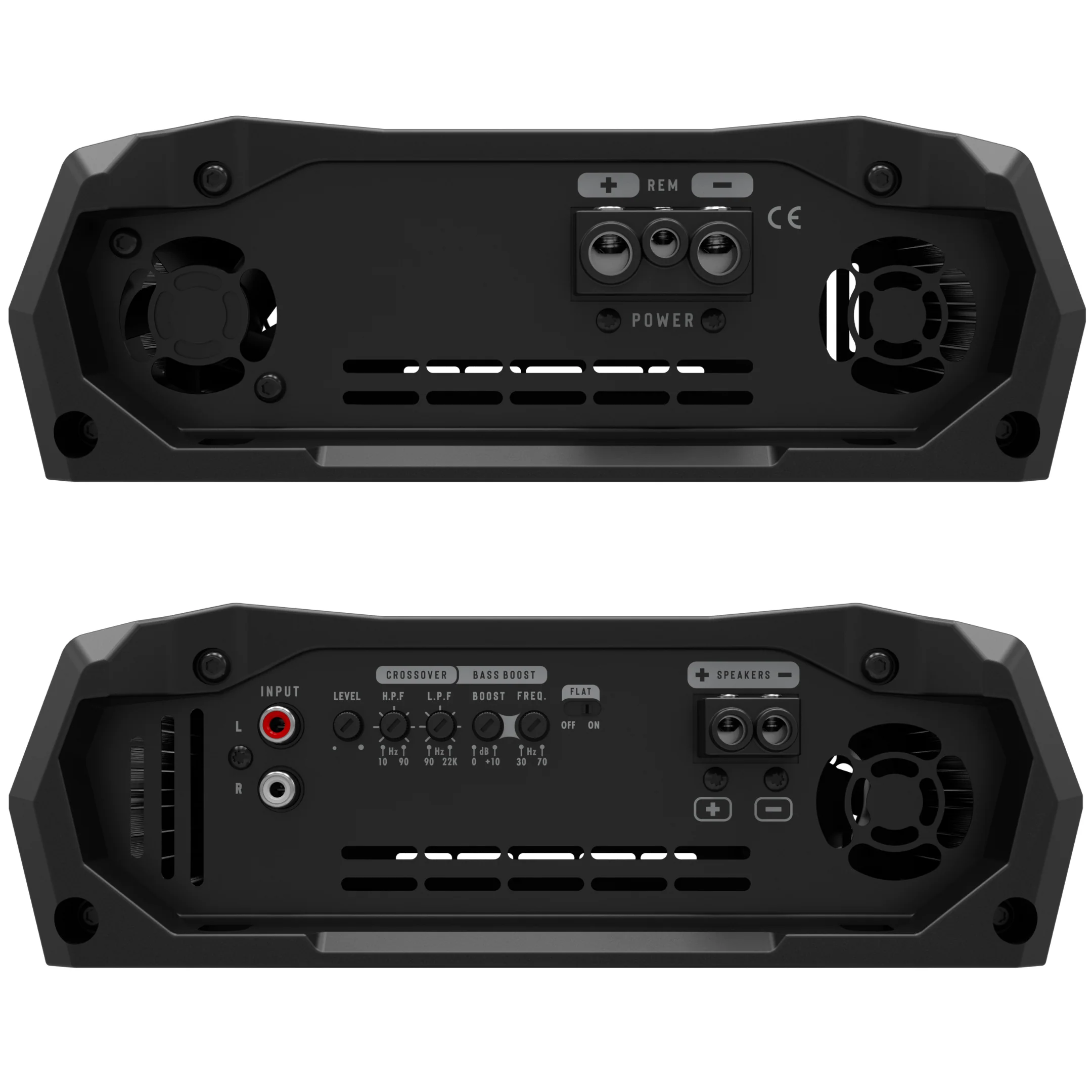

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10

Stetsom BRAVO FULL 2K Digital Full-Range Amplifier Mono 1 Channel Class D 2000 Watts RMS

Stetsom BRAVO FULL 2K Digital Full-Range Amplifier Mono 1 Channel Class D 2000 Watts RMS


BRAVOFULL3K

Technical Specifications (1 Ohm)

Number of Channels 1
RMS Power at 1 Ohm @ 14.4V 3500W
RMS Power at 2 Ohms @ 14.4V 2100W
RMS Power at 1 Ohm @ 12.6V 3100W
RMS Power at 2 Ohms @ 12.6V 2000W
Minimum input sensitivity 200mV
Signal to noise ratio >90dB
Frequency response (-3dB) 10Hz ~ 22KHz
Crossover low pass 90Hz ~ 22KHz
Crossover high pass 10Hz ~ 90Hz
Bass boost Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB
Input impedance 18K Ohms
Supply voltage 9V ~ 16V DC
Musical/Bass consumption 160A/320A
Dimensions (H x W x L) 3.14" x 9.11" x 9.29"
Weight 6.39 lb
Select Output Impedance
From $73.15

Original: $208.99

-65%
Stetsom BRAVO FULL 2K Digital Full-Range Amplifier Mono 1 Channel Class D 2000 Watts RMS—

$208.99

$73.15

Product Information

Shipping & Returns

Description


BRAVOFULL3K

Technical Specifications (1 Ohm)

Number of Channels 1
RMS Power at 1 Ohm @ 14.4V 3500W
RMS Power at 2 Ohms @ 14.4V 2100W
RMS Power at 1 Ohm @ 12.6V 3100W
RMS Power at 2 Ohms @ 12.6V 2000W
Minimum input sensitivity 200mV
Signal to noise ratio >90dB
Frequency response (-3dB) 10Hz ~ 22KHz
Crossover low pass 90Hz ~ 22KHz
Crossover high pass 10Hz ~ 90Hz
Bass boost Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB
Input impedance 18K Ohms
Supply voltage 9V ~ 16V DC
Musical/Bass consumption 160A/320A
Dimensions (H x W x L) 3.14" x 9.11" x 9.29"
Weight 6.39 lb
