Developed for those seeking high performance and sound fidelity in automotive amplifiers.

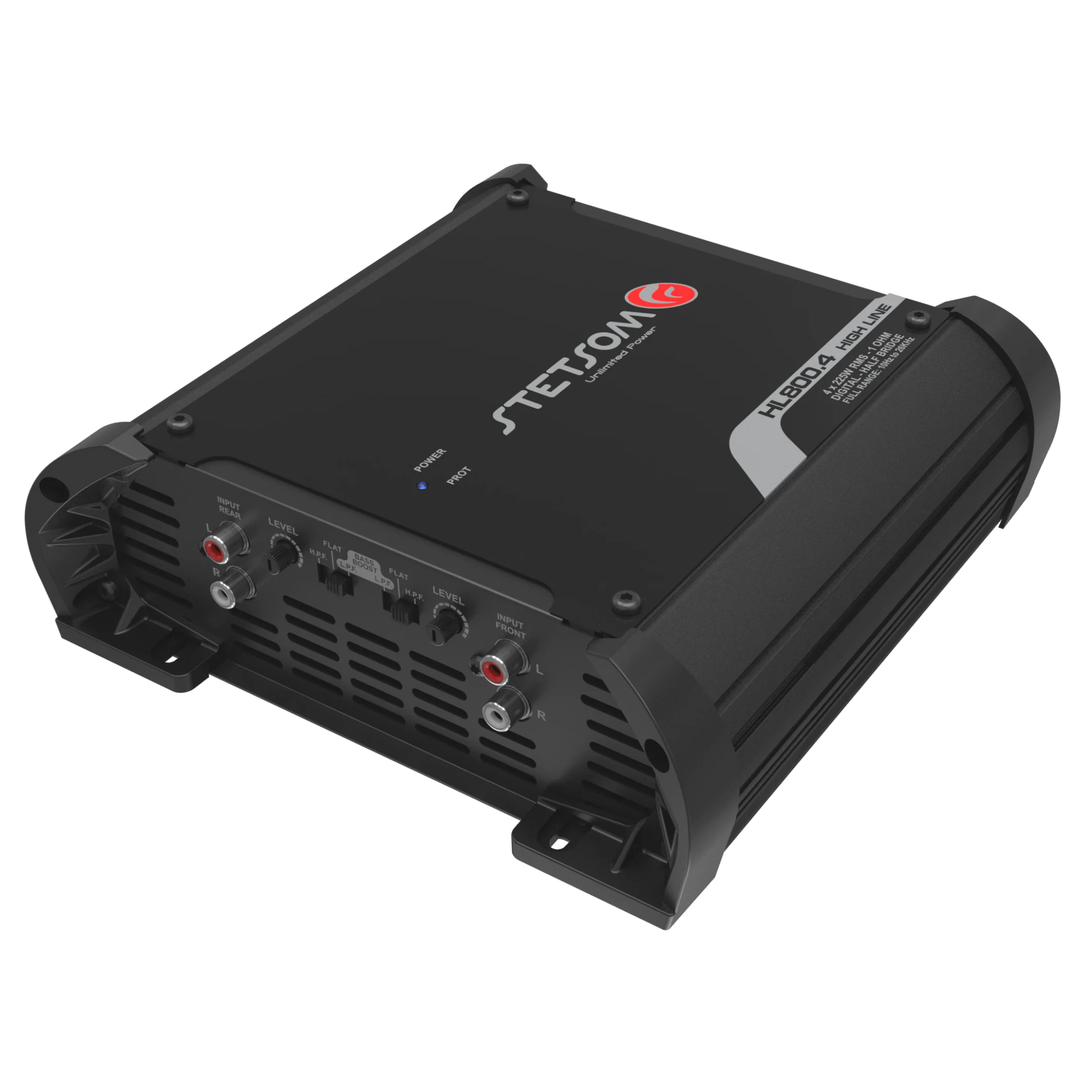

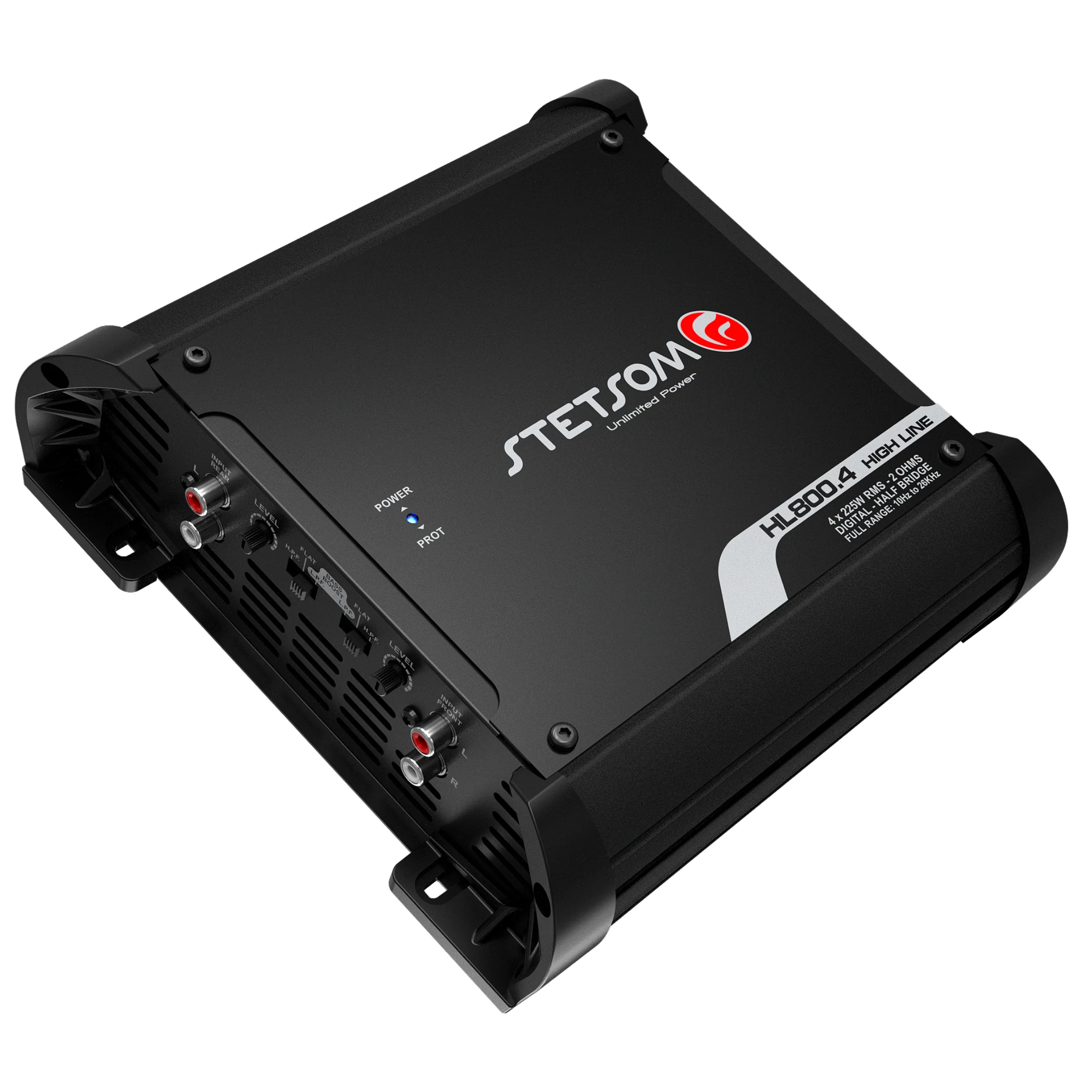

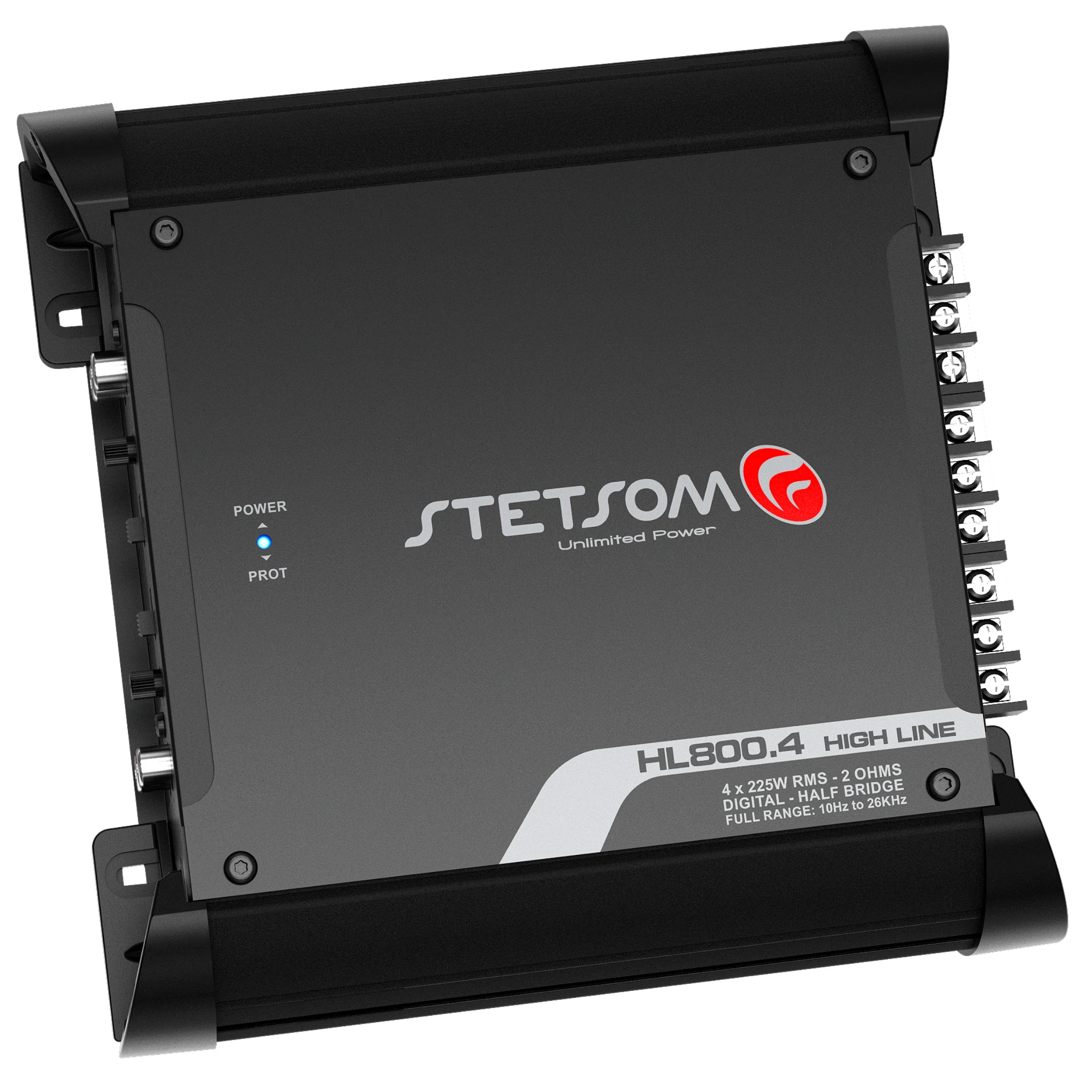

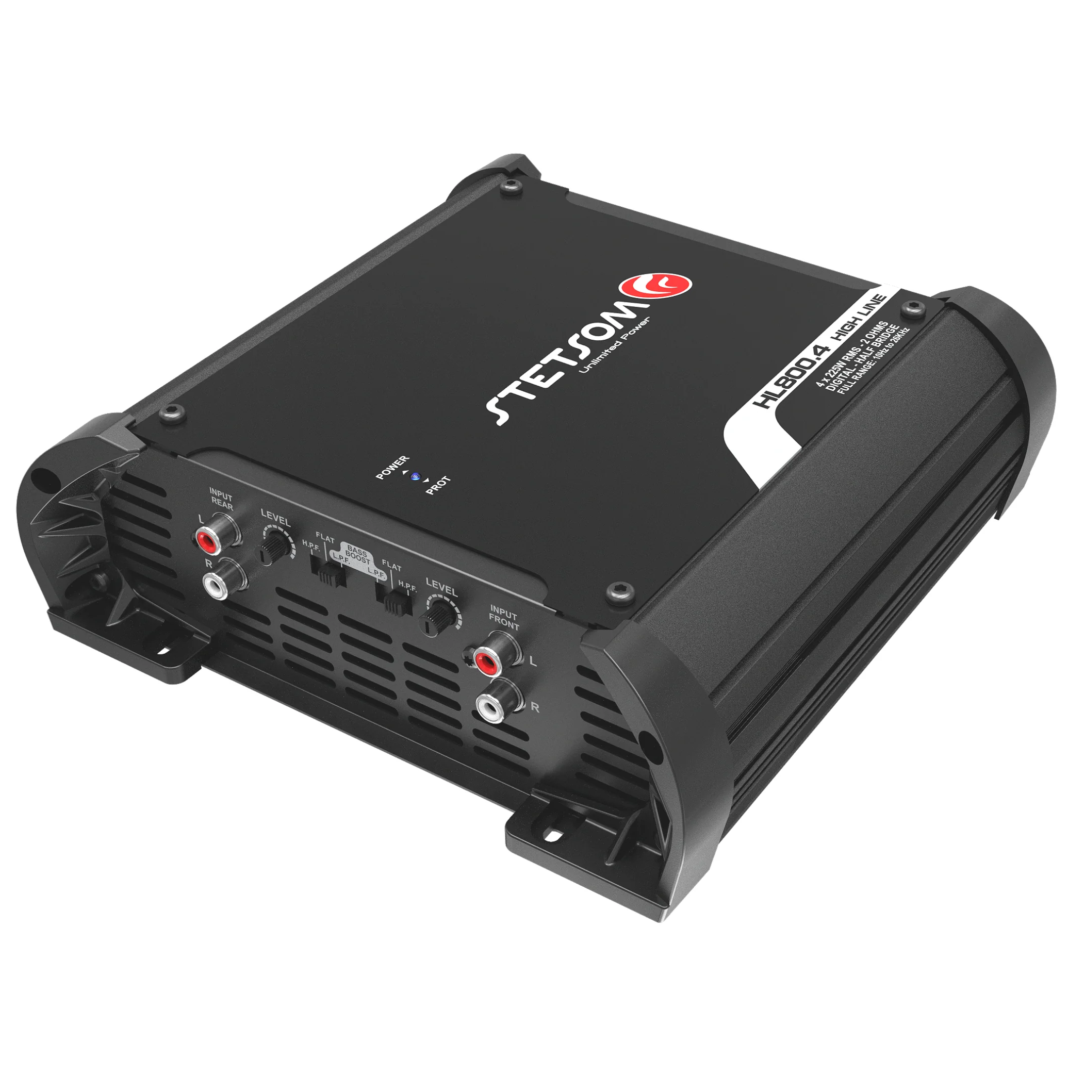

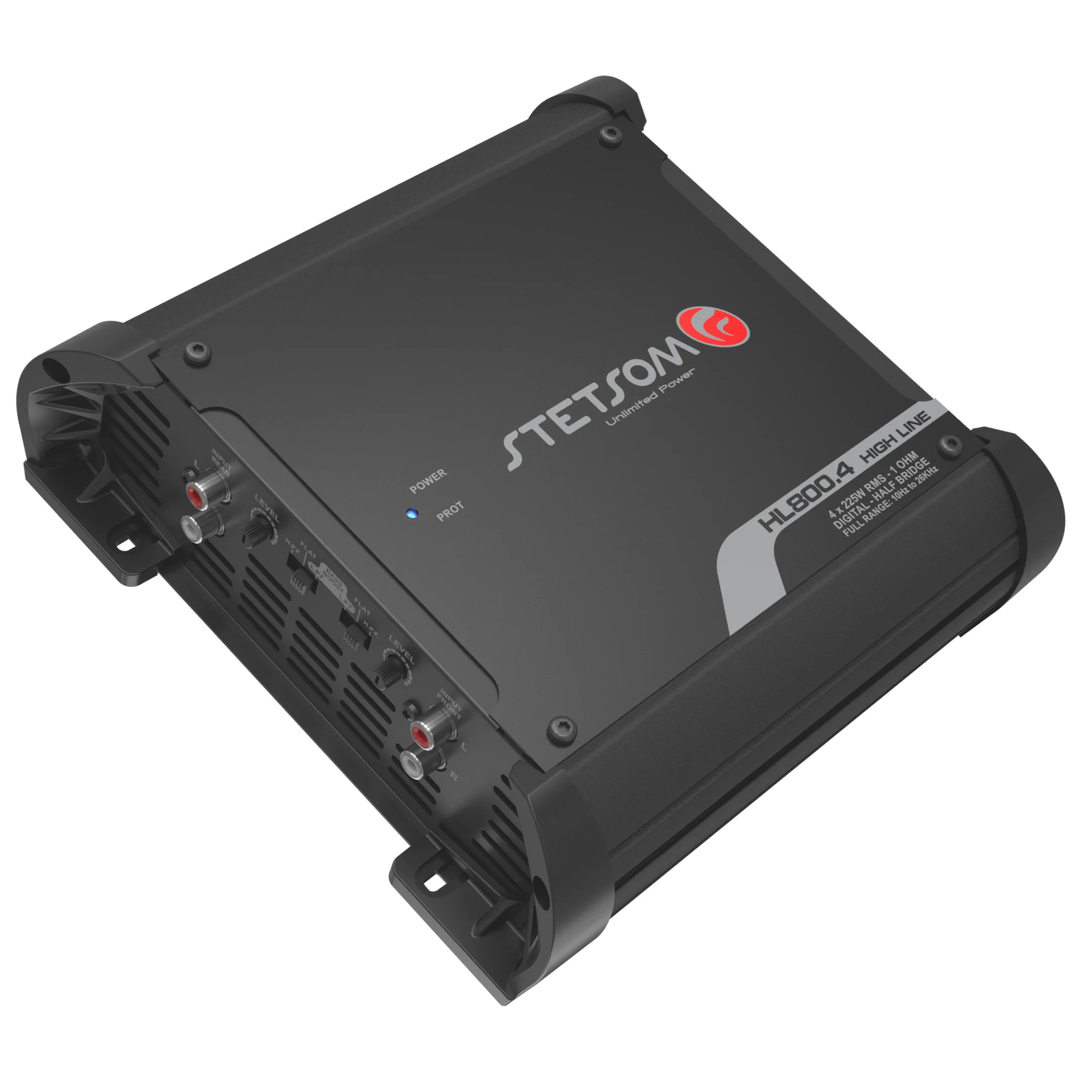

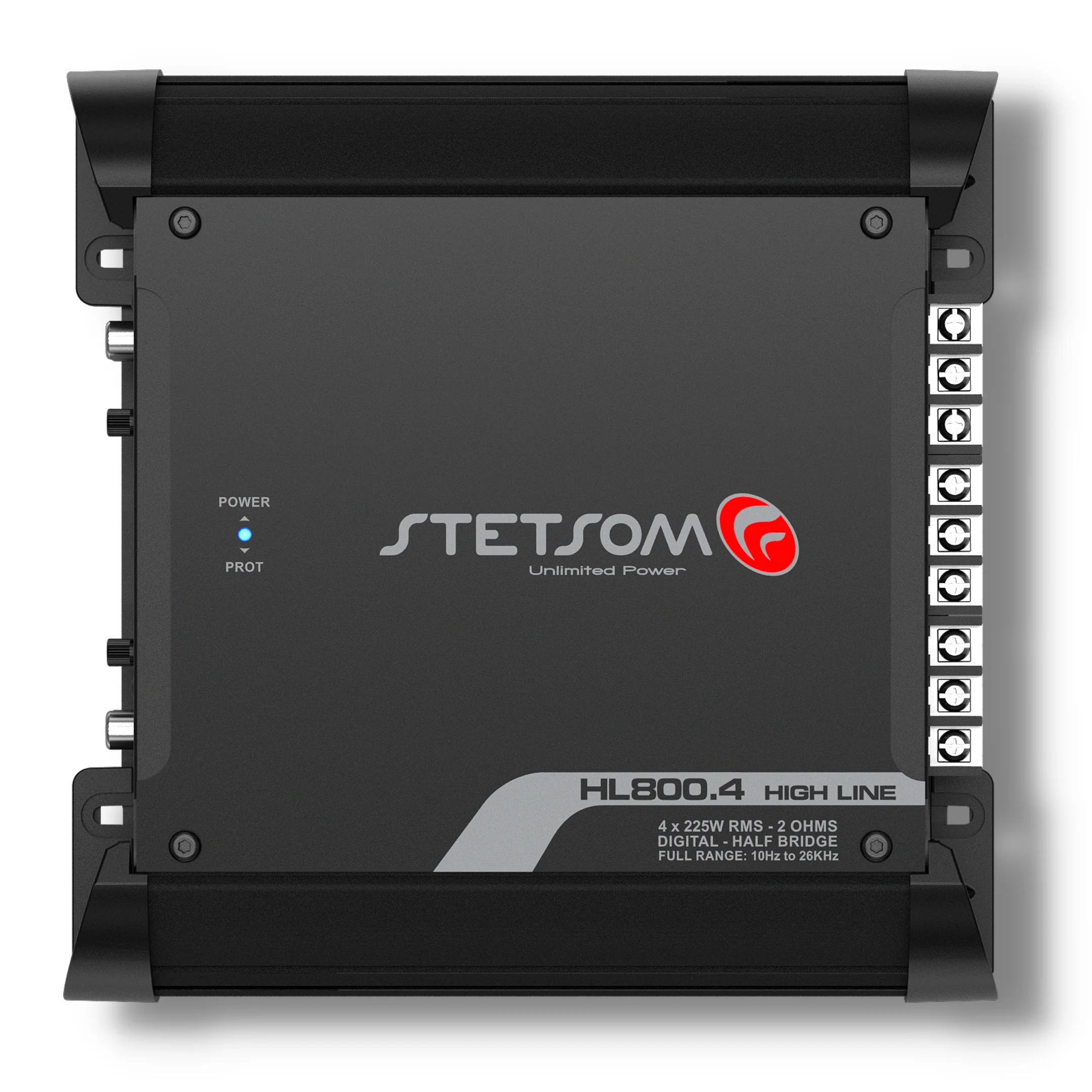

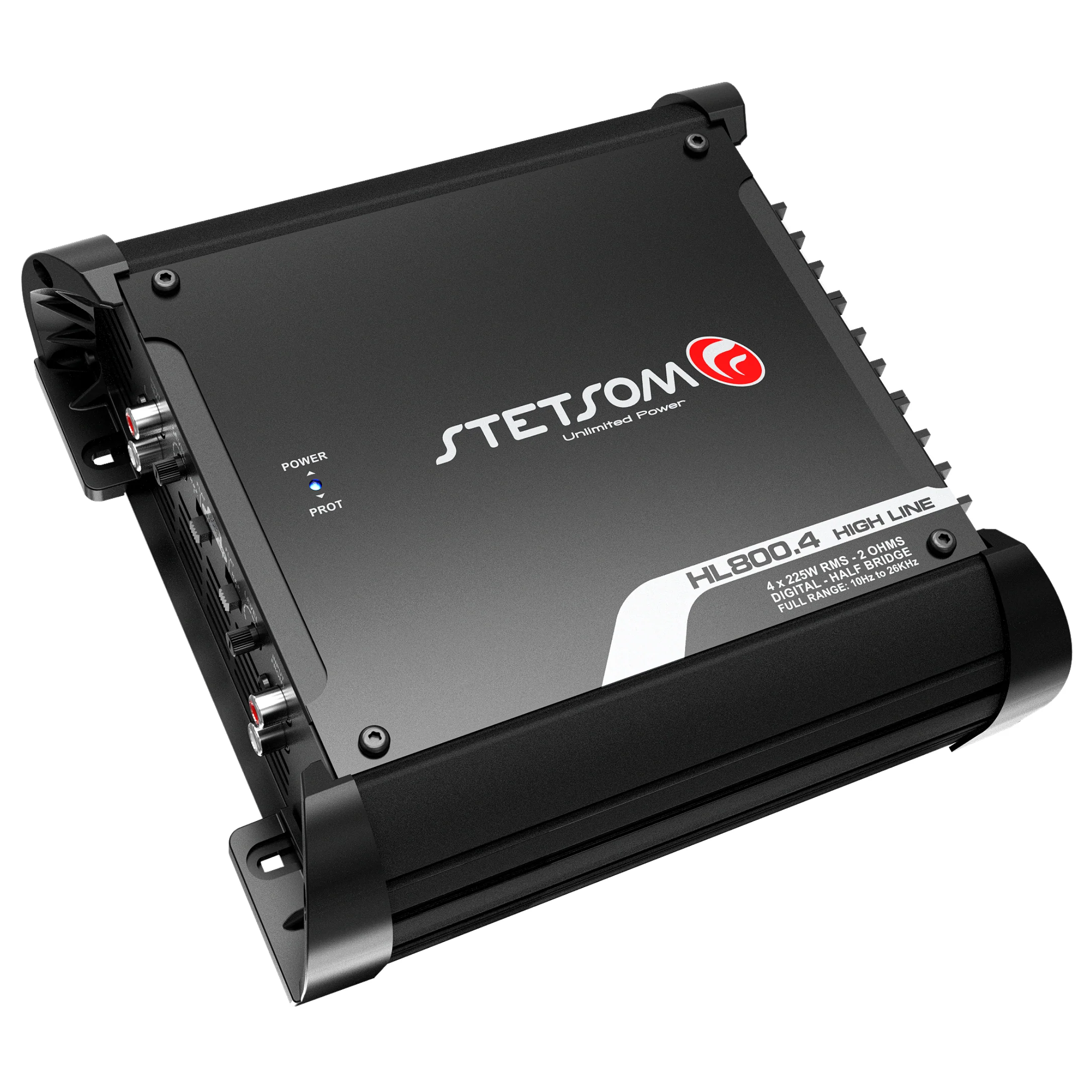

The HL800.4, is a 900W RMS product with 4 CHANNELS OF 225W RMS and great installation versatility.

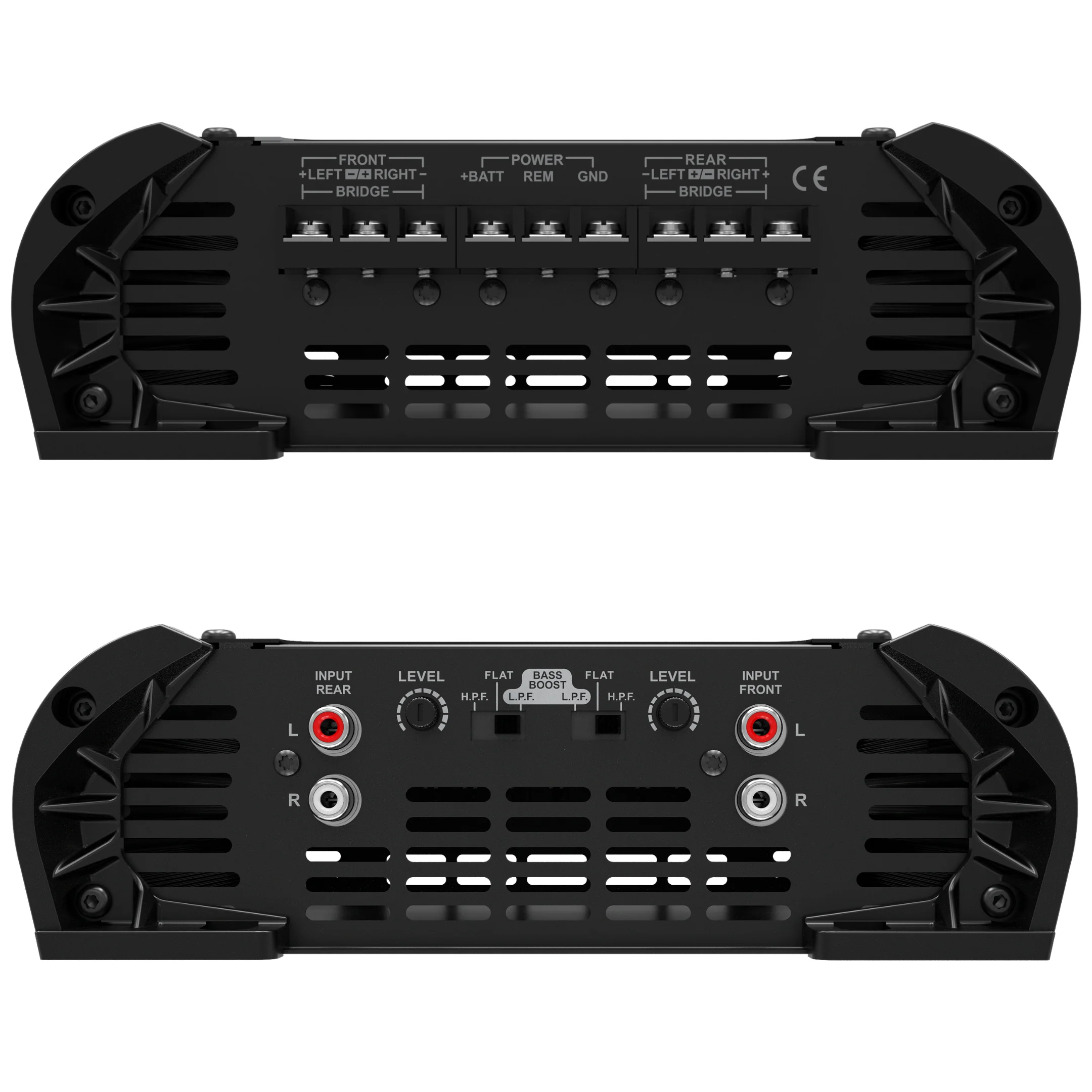

It offers independent front and rear channels such as LEVEL to adjust the input signal level and Crossover, allowing you to choose between LOW-PASS, HIGH-PASS or FLAT (FULL-RANGE) operation.



TIPS ON INSTALLATION POSSIBILITIES:

• 16 tweeters/drivers being 4 in parallel per channel.
• 2 channels in 400W Bridge in 4 Ohms (Front, Rear).
• 3 channels being two independent of 200W and one in Bridge of 400W.
• Tri-mod mode with a 4-ohm speaker in bridge + 2 horns or 2 super twitters per channel.



TECHNICAL SPECS (1 Ohm):

• Number of Channels: 4
• RMS Power at 1 Ohm 12.6V: 4 x 226W RMS (STEREO)
• RMS Power at 2 Ohm 12.6V: 2 x 144W RMS (STEREO)
• RMS Power at 1 Ohm 13.8V: 4 x 260W RMS (STEREO)
• RMS Power at 2 Ohm 13.8V: 4 x 204W RMS (STEREO)
• Power @ 12.6V Bridge 2 Ohms: 2 x 430W RMS
• Power @ 13.8V Bridge 2 Ohms: 2 x 520W RMS
• Power Supply: 9 ~ 15V
• Frequency Response: 20 Hz ~ 22 KHz
• Low Pass Crossover: 90 Hz
• High Pass Crossover: 90 Hz
• Bass Boost (Low Pass): +12 dB
• Minimum output impedance: 1 Ohm (STEREO) / 2 Ohms (BRIDGE)
• Musical Consumption: 52.5A
• BASS Consumption: 105A
• Dimensions (H x W x L): 2.5" x 8.1" x 8.1"
• Weight: 3.7 lb



TECHNICAL SPECS (2 Ohms):

• Number of Channels: 4
• RMS Power in 2 Ohms 12.6V: 4 x 225W RMS (STEREO)
• RMS Power in 4 Ohms 12.6V: 4 x 140W RMS (STEREO)
• RMS Power in 2 Ohms 13.8V: 4 x 260W RMS (STEREO)
• RMS Power in 4 Ohms 13.8V: 4 x 165W RMS (STEREO)
• Power @ 12.6V Bridge 4 Ohms: 2 x 450W RMS
• Power @ 13.8V Bridge 4 Ohms: 2 x 520W RMS
• Power Supply: 9 ~ 15V
• Frequency Response: 10Hz ~ 26KHz
• Low Pass Crossover: 90 Hz
• High Pass Crossover: 90 Hz
• Bass Boost (Low Pass): +12 dB
• Minimum output impedance: 2 Ohm (STEREO) / 4 Ohms (BRIDGE)
• Musical Consumption: 44A
• BASS Consumption: 88A
• Dimensions (H x W x L): 2.5" x 8.1" x 8.1"
• Weight: 3.7 lb
