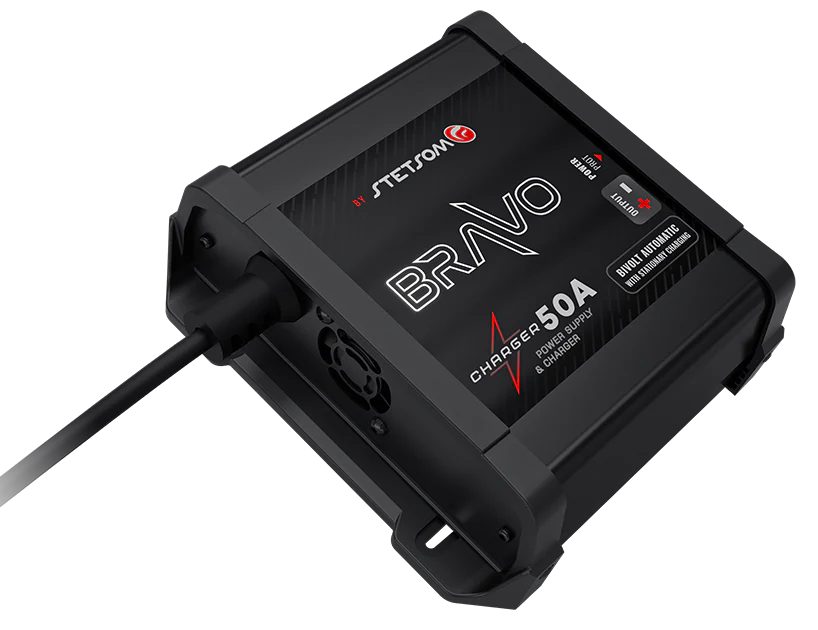

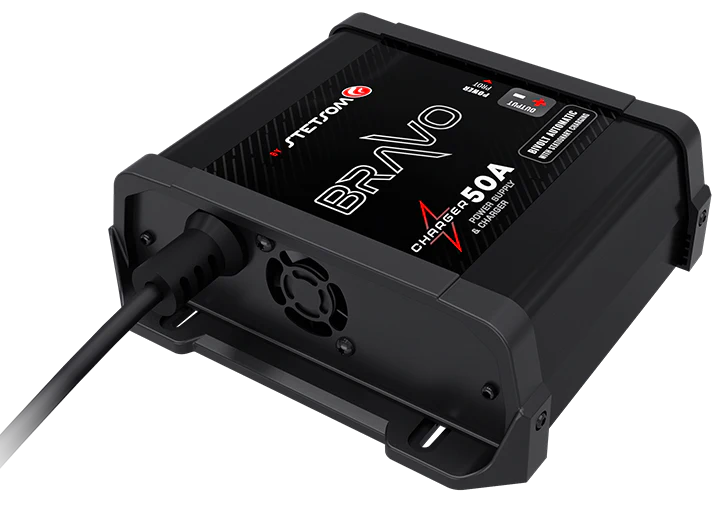

The BRAVO CHARGER line offers high energy efficiency when charging batteries and powering automotive equipment.

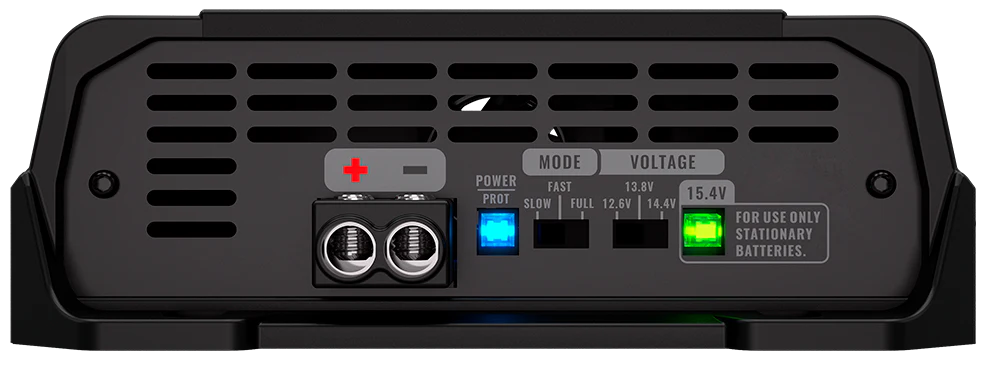

• It has an exclusive mode for charging stationary batteries, when used in 15.4V mode;
• Fast charge mode, for complete charging in less time
• Slow charge mode, allows you to increase useful life with a longer charging process, generating less stress and heat to the battery;
• FULL mode, ideal for continuous use of equipment, preventing batteries from discharging during use.

Its steel and aluminum design makes for a much lighter and more modern power supply, with greater efficiency in heat dissipation.

AC input with automatic BI-VOLT switching for use in different regions without worry.

TECHNICAL SPECIFICATIONS

CHARACTERISTICS	BRAVO CHAGER 50A
Internal fuse AC input	✔
Output short circuit DC	✔
Supply Voltage	127V ~ 220V (BIVOLT AUTO)
High Temperature	✔
Operating voltage DC	2,6V / 13,8V / 14,4V / 15,4V
Operating voltage AC	127V: 80V ~ 140V / 220V: 160V ~ 240V
Impedance Output	50A @ 12,6V
Consumption AC	127V: 10,5A / 220V: 6A
Dimensions (H x W x D) mm	63 x 174,5 x 183 mm
Weight Kg	1,4 Kg
